EV Quick Charger

As a pioneering maker of rapid charging systems for electric vehicles (EVs), JFE Technos carried out product development of a system with excellent running cost performance, keeping in mind monozukuri (Japanese-style manufacturing) that anticipates the next generation.
Making full use of the engineering capabilities which are our strength, we provide integrated services spanning consulting, planning, design, manufacture, construction at the site and after-sales service.

RAPIDAS-X2

50 kW rapid charging system

RAPIDAS-EX 55

55 kW rapid charging system

Super RAPIDAS-SR (built-in storage battery type)

100 kW rapid charging system

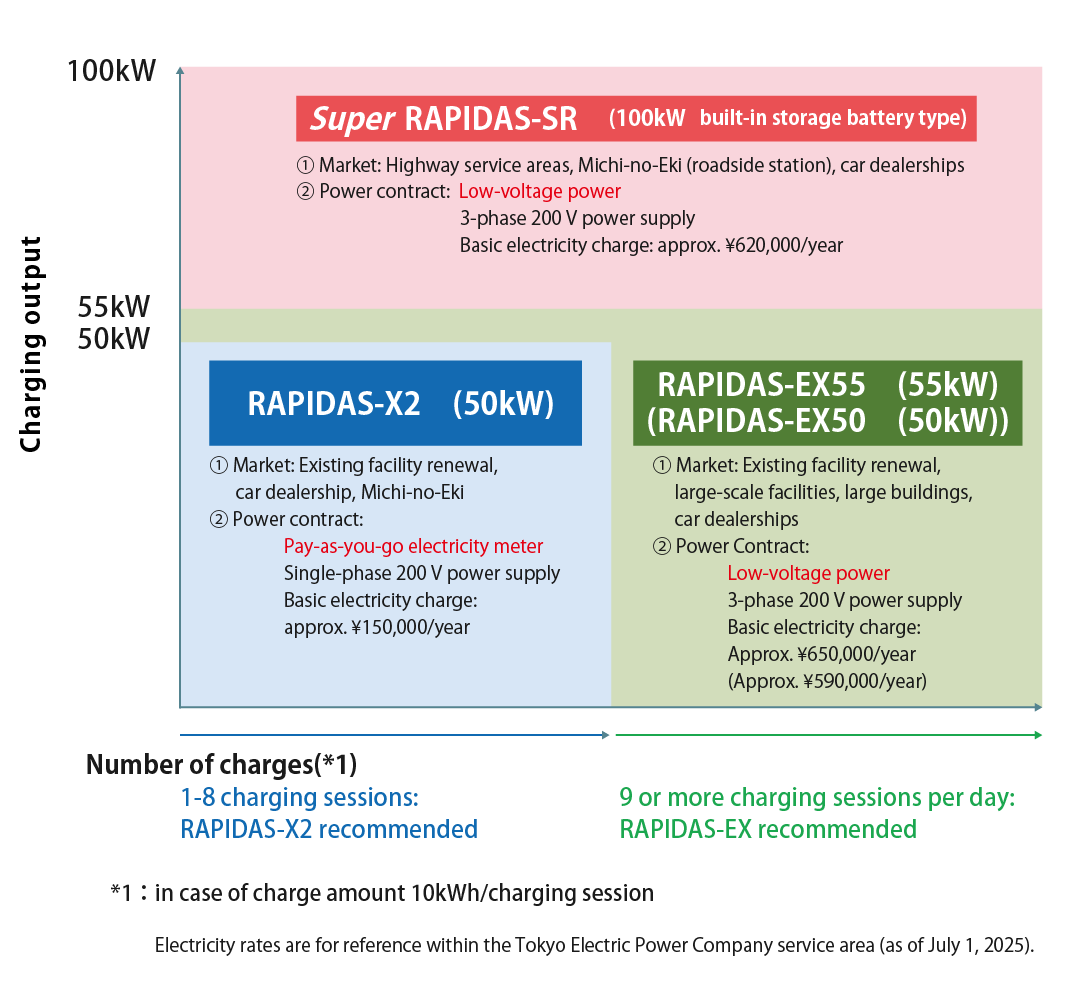

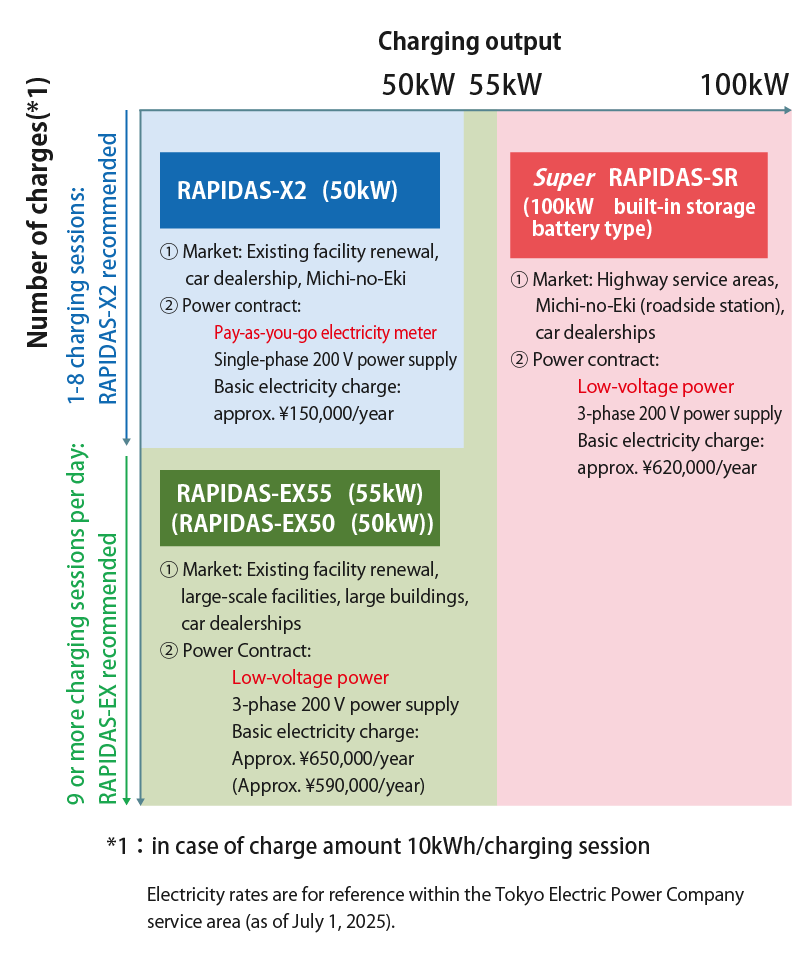

Image of Line-Up

	Maximum output	Number of charging cables	Power receiving	Power contract^※1
RAPIDAS-X2	Maximum output50kW	Number of charging cables1	Power receivingSingle-phase AC 200 V 55 kVA or less	Power contractMeter-rate lighting contract 43kW
RAPIDAS-EX 55	Maximum output55kW	Number of charging cables1	Power receiving3-phase AC 200 V 59.7 kVA or less	Power contractLow voltage 49kW
Super RAPIDAS-SR (built-in storage battery type)	Maximum output①100kW^※2 ②50kW	Number of charging cables2	Power receiving3-phase AC 200 V 56 kVA or less	Power contract Low voltage 46kW

Supports CHAdeMO standard (standard for EV rapid charging systems)
*1 In case of separate power receiving by special application
*2 100 kW in case of independent use by No. 1 stand, 50 kW each in case of simultaneous use by No. 1 and No. 2 stands.
Sales of “RAPIDAS-X” ended in March 2024, and sales of “RAPIDAS-X2” began in April 2024.

Overwhelming cost performance
in terms of power cost

Annual electricity basic charge　　 (in case of separate power receiving by special application)

RAPIDAS-X2

This JFE Technos system is the only 50 kW output quick charger in Japan that can use a meter-rate lighting contract.
In comparison with the 50 kW rapid charging systems of other companies (low voltage power receiving contract), the basic power rate can be reduced by about ¥470,000/year.

Overwhelming cost performance in terms of power cost

Super RAPIDAS-SR

A rapid charging system that can use a low voltage power contract while also delivering an output of 100 kW thanks to assist by a built-in storage battery (52.8 kWh).
In comparison with other companies’ 100 kW rapid charging systems (high voltage power receiving contract), the JFE Technos system can reduce the basic power rate by about ¥1.66 million/year.
It is also possible to supply power (100 V) to external during power outages by using the charger in tandem with an optional power outage power supply device.
