JFE High-Rise Puzzle Tower Variations
Single Row

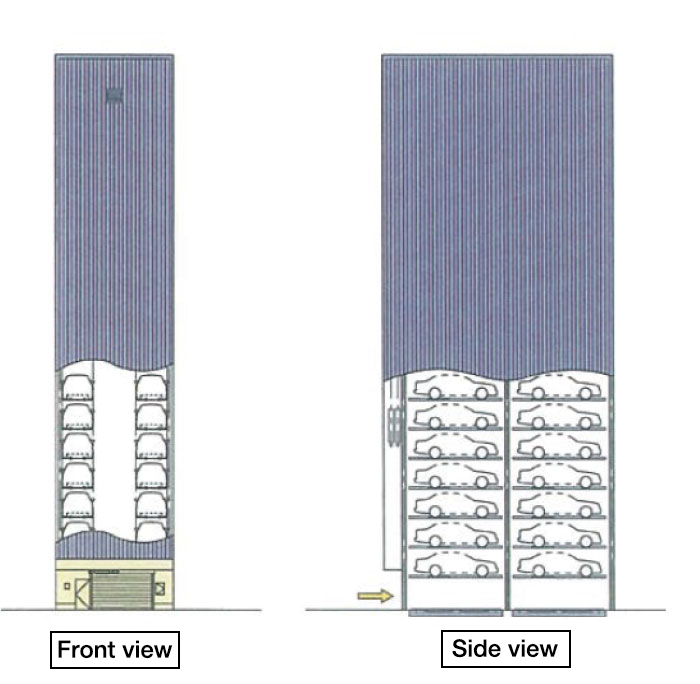

Standard-type JFE Puzzle Tower. Suitable for various applications, including hourly parking, exclusive monthly contract parking, etc., enabling wide use. High demand parking in urban space.
Video of loading cars
Video of unloading cars
-
-
Height dimension table
*Vehicle height: 1,550 mm
Capacity (vehicle unit) Height (mm) 60 56,210 62 57,960 64 59,710 66 61,460 68 63,210 70 64,960 72 66,710 74 68,460 76 70,210 78 71,960 80 73,710 82 75,460 84 77,210 86 78,960 88 80,710 90 82,460 92 84,210 94 85,960 96 87,710 98 89,460 100 91,210 *In the case of 31 m or more, it is regulated as a mid-to-high rise building.
1st floor: 2,350 mm + vehicle compartment: 1,760 mm × N layer + machine room: 1,360 mm
Double Row
Suitable for effective use of limited space. Efficient type for construction of 2 tower units on sites with a narrow frontage and some depth.
Video of loading cars
Video of unloading cars
-
-
Height dimension table
*Vehicle height: 1,550 mm
Capacity (vehicle unit) Height (mm) 120 56,210 124 57,960 128 59,710 132 61,460 136 63,210 140 64,960 144 66,710 148 68,460 152 70,210 156 71,960 160 73,710 164 75,460 168 77,210 172 78,960 176 80,710 180 82,460 184 84,210 188 85,960 192 87,710 196 89,460 200 91,210 *In the case of 31 m or more, it is regulated as a mid-to-high rise building.
1st floor: 2,350 mm + vehicle compartment: 1,760 mm × N layer + machine room: 1,360 mm
* In the case of a double row and double balance weight, the machine room is 1,460 mm.
90° loading type
Suitable for sites with narrow frontages. Unlike the standard type, a 90° turntable is used for efficient site utilization.
* The illustration on the left shows the type combining the 90° loading type with the multi-row.
-
-
Height dimension table
*Vehicle height: 1,550 mm
Capacity (vehicle unit) Height (mm) 60 56,510 62 58,260 64 60,010 66 61,760 68 63,510 70 65,260 72 67,010 74 68,760 76 70,510 78 72,260 80 74,010 82 75,760 84 77,510 86 79,260 88 81,010 90 82,760 92 84,510 94 86,260 96 88,010 98 89,760 100 91,510 *In the case of 31 m or more, it is regulated as a mid-to-high rise building.
1st floor: 2,350 mm + vehicle compartment: 1,760 mm × N layer + machine room: 1,660 mm
